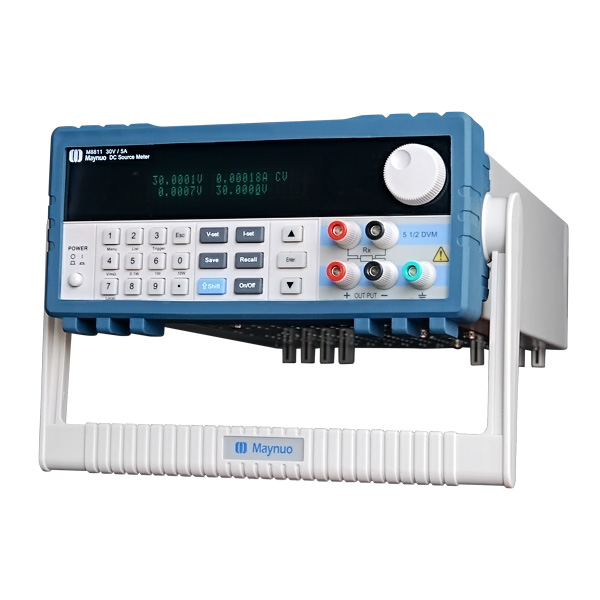

可編程直流電源M8811/8812/8813（150W）
所屬類別：電源產品分類>>穩壓電源
電子信箱：993752413@qq.com
聯系電話：025-52811885
聯 系 人：閔
更新時間：2012-3-22 11:24:11
M8811電源是在普通實驗室可編程電源基礎上拔高設計的新一代產品。該產品配備通訊接口，具有超快上升沿速度（速度可小于10mS). M8811電源兼具桌上型和系統型的特性，可任意搭配其他儀器，集成為特殊功能的測試系統，以完成不同場合下的測量需求�？赏ㄟ^(guò)面板鍵盤編輯程序，兼具電壓表，歐姆表的功能，給用戶的使用帶來極大的方便，是普通可編程電源的換代產品，具有極高的性價比優勢。
主要特點：
• 高精度低噪音
• 內置高精度五位半電壓表和毫歐姆表
• 支持高精度和動態編程輸出
• 支持遠端電壓補償，多數據存儲
• 支持外部觸發輸入、輸出
• 開機自檢，軟件校正，標準儀器架設計
• 使用標準SCPI通信協議
• 支持GPIB/RS232/RS485/USB通訊
|
Model |
M8811 | |
|
Input Raitng |
Voltage |
0-30V |
|
Current |
0-5A | |
|
Load Regulation |
Voltage |
＜0.01%+0.5mV |
|
Current |
＜0.01%+0.1mA | |
|
Setting Value Resolution |
Voltage |
0.5mV |
|
Current |
0.1mA | |
|
Readback Value Resolution |
Voltage |
0.1mV |
|
Current |
0.01mA | |
|
Setting Value Accuracy |
Voltage |
0.01%+2mV |
|
Current |
0.05%+1mA | |
|
Readback Value Accuracy |
Voltage |
0.02%+5mV |
|
Current |
0.1%+5mA | |
|
Ripple |
Voltage |
3mvp-p |
|
Current |
2mA rms | |
|
Voltmeter Accuracy |
0-12V Accuracy: 0.02%+2mV; 0-50V Accuracy: 0.02%+5mV | |
|
Milliohmmeter Accuracy |
10W 0-1000mΩ Accuracy: 0.2%+3 mΩ; 1000-10000 mΩ Accuracy: 0.2%+6 mΩ | |
|
Working Condition |
0-40℃; 0-90% RH | |
|
Power Required |
AC 100V/120V/220V+10%; 50/60 HZ | |
|
Weight |
6.5Kg | |
|
Dimension |
214mm (W)*108 mm(H)*365mm(D) | |
|
Model |
M8812 | |
|
Input Raitng |
Voltage |
0-75V |
|
Current |
0-2A | |
|
Load Regulation |
Voltage |
＜0.01%+0.5mV |
|
Current |
＜0.01%+0.1mA | |
|
Setting Value Resolution |
Voltage |
1mV |
|
Current |
0.05mA | |
|
Readback Value Resolution |
Voltage |
0.1mV |
|
Current |
0.01mA | |
|
Setting Value Accuracy |
Voltage |
0.01%+5mV |
|
Current |
0.05%+0.5mA | |
|
Readback Value Accuracy |
Voltage |
0.02%+12mV |
|
Current |
0.05%+2mA | |
|
Ripple |
Voltage |
5mvp-p |
|
Current |
1mA rms | |
|
Voltmeter Accuracy |
0-12V Accuracy: 0.02%+2mV; 0-50V Accuracy: 0.02%+5mV | |
|
Milliohmmeter Accuracy |
10W 0-1000mΩ Accuracy: 0.2%+3 mΩ; 1000-10000 mΩ Accuracy: 0.2%+6 mΩ | |
|
Working Condition |
0-40℃; 0-90% RH | |
|
Power Required |
AC 100V/120V/220V+10%; 50/60 HZ | |
|
Weight |
6.5Kg | |
|
Dimension |
214mm (W)*108 mm(H)*365mm(D) | |
|
Model |
M8813 | |
|
Input Raitng |
Voltage |
0-150V |
|
Current |
0-1A | |
|
Load Regulation |
Voltage |
＜0.01%+0.5mV |
|
Current |
＜0.01%+0.1mA | |
|
Setting Value Resolution |
Voltage |
2mV |
|
Current |
0.01mA | |
|
Readback ValueResolution |
Voltage |
1mV |
|
Current |
0.01mA | |
|
Setting Value Accuracy |
Voltage |
0.01%+15mV |
|
Current |
0.05%+0.1mA | |
|
Readback Value Accuracy |
Voltage |
0.02%+25mV |
|
Current |
0.05%+1mA | |
|
Ripple |
Voltage |
10mvp-p |
|
Current |
0.5mA rms | |
|
Voltmeter Accuracy |
0-12V Accuracy: 0.02%+2mV; 0-50V Accuracy: 0.02%+5mV | |
|
Milliohmmeter Accuracy |
10W 0-1000mΩ Accuracy: 0.2%+3 mΩ; 1000-10000 mΩ Accuracy: 0.2%+6 mΩ | |
|
Working Condition |
0-40℃; 0-90% RH | |
|
Power Required |
AC 100V/120V/220V+10%; 50/60 HZ | |
|
Weight |
6.5Kg | |
|
Dimension |
214mm (W)*108 mm(H)*365mm(D) | |
