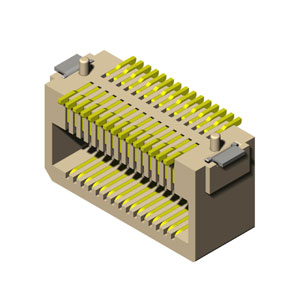

TYPE:0.5mm pitch B- TO- B （側(cè)插） Female

0.5mm B-TO-B Conn

Description：

Electrical

Voltage: 50V AC(RMS)/DC

Cruuent:0.5A AC(RMS)/DC

Contact Resistance: 50mΩmax

Insulation Resistance:50mΩmax

Dielectric Withstanding Voltage: 250VAC.RMS

Operating Temp:-20℃ ~~  +85℃

Materials

Housing:High temperature Plastic UL94V-0

Pin: BRASS

Fitting Nail:BRASS

Apply for (Circuit/2)=Even

Terminal:Copper Alloy

1、Pitch：0.3MM  0.4MM  0.5MM  0.65MM  0.8MM

2、PIN： 10P 12P 14P 16P 18P 20P 22P 24P 26P 28P 30P 40PIN

3、specification：?jiǎn)慰ú�、雙卡槽、定位柱、無定位柱

4、COLOR：   beige 、 brown

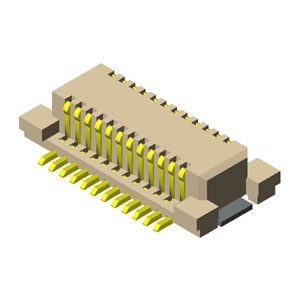

5、Male&Female Connector0.5mm Board to Board Male to Female

Mating height 5.0mm SMT Type

1.Type A:(M+F＝5.0mm)

Male height＝

Female height＝

From: 2x10＝20pins To: 2x40＝80pins (40pins/unit)
