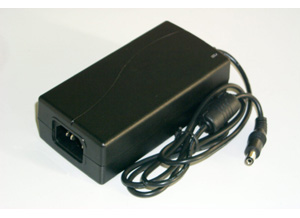

桌面型開關電源適配器
所屬類別：電源產品分類>>開關電源(AC/DC)
電子信箱：swlu1980@163.com
聯系電話：021-54296992 54302191轉606
聯 系 人：盧紹偉
更新時間：2011-5-30 15:50:57
42W Series DSA-0421S
Universal Input A dapter Switching Power Supply
Features
*Meet CEC *Low Power Consumption
*Class I EMI *＜750ua Leakage
*Class II EMI *＜250ua Leakage
Applications
*Computer *Communication *Consumer
Safety Approvals(60950)
*UL/CUL *BSMI *CB *PSE *T-License
*CCC *SAA/C-Tick *KA *GS
Output Specifications
y=1/2/3,(1means C 14 AC inlet,2 means C8 AC inlet,3 means C6 A C inlet)
z=aa which represents the output wattage
|
MODEL |
INPUT Voltage |
OUTPUT | ||||
|
Range |
Frequancy |
Vdc |
Reg. |
A(max) |
W(max) | |
|
DSA-0421S-03 yz |
100-240V |
50/60Hz1.2A |
3.0-5.0 |
±5% |
6.00 |
20 |
|
DSA-0421S-05 yz |
100-240V |
50/60Hz1.2A |
5.1-7.0 |
±5% |
6.00 |
30 |
|
DSA-0421S-07 yz |
100-240V |
50/60Hz1.2A |
7.1-9.0 |
±5% |
5.14 |
36 |
|
DSA-0421S-039 yz |
100-240V |
50/60Hz1.2A |
9.1-11.0 |
±5% |
4.50 |
40 |
|
DSA-0421S-12yz |
100-240V |
50/60Hz1.2A |
11.1-13.0 |
±5% |
3.80 |
42 |
|
DSA-0421S-14 yz |
100-240V |
50/60Hz1.2A |
13.1-16.0 |
±5% |
2.23 |
42 |
|
DSA-0421S-20 yz |
100-240V |
50/60Hz1.2A |
16.1-21.0 |
±5% |
2.60 |
42 |
|
DSA-0421S-24 yz |
100-240V |
50/60Hz1.2A |
21.1-27.0 |
±5% |
2.00 |
42 |
|
DSA-0421S-28 yz |
100-240V |
50/60Hz1.2A |
27.1-33.0 |
±5% |
1.56 |
42 |
|
DSA-0421S-40 yz |
100-240V |
50/60Hz1.2A |
33.1-40.0 |
±5% |
1.27 |
42 |
|
DSA-0421S-50 yz |
100-240V |
50/60Hz1.2A |
40.1-50.0 |
±5% |
1.05 |
42 |
DSA-0421S Characteristics
AC Input Voltage Operation Temperature
90 to 264 VAC 0 to 40℃
AC Input Frequancy: Storage Temperature
47 to 63 Hz -25 to +60℃
AC Input Current(Full Load) MTBF
1.2A Max 50000-100000 by option
(full load,240V A C,25℃)
Leakage Current Emissions
Less than 250μA,(264V A C) Class 2 FCC Class B
Less than 750μA,(264V A C) Class 1 EN 55022 B
Dielectric Withstand(Hi-pot) EN 55013B
3000V(1500V)AC,1 min,10m A CLASS2(1)
Hold-up Time(Full Load) Immunity
5mS 120V A C 61000-4-2,Level 3
20mS 240V A C 61000-4-3,Level 2
Over current Protection 61000-4-4,Level 2
Short Circuit,Auto Restart 61000-4-5,Level 3
61000-4-6,Level 2
61000-4-11
